#include <stdio.h>
#include <search.h>
#include <stdlib.h>
#include <math.h>
#include <string.h>
#include "FuncDef.h"
#include <unistd.h>

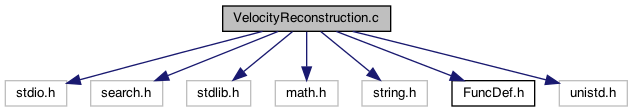

Include dependency graph for VelocityReconstruction.c:

Data Structures
struct	lb

struct	matr

struct	inpfile

Functions
void	DarcyVelocity ()

void	OutputVelocities ()

struct matr	MatrixProducts (double normxarea[][2], int number)

struct lb	DefineBoundaryAngle (int i, unsigned int edge_1, unsigned int edge_2, int f1, int coorf)

double	DefineAngle (double u1, double u2, double v1, double v2)

void	VelocityInteriorNode (double normx_area[][2], int i, int number, unsigned int indj[max_neighb], int vi)

void	VelocityExteriorNode (double norm_xarea[][2], int i, int number, unsigned int indj[max_neighb], struct lb lbound, int vi)

void	BoundaryCells ()

int	CornerVelocity (int i, int m1, int m2, int m3, int s1, int s2, int s3)

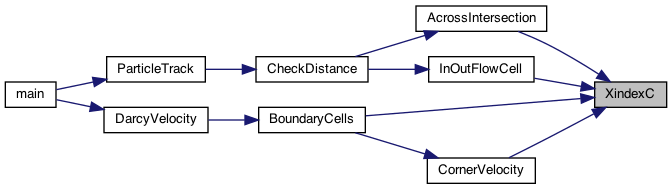

int	XindexC (int nodenum, int ii)

int	YindexC (int nodenum, int ii)

void	HalfPolygonVelocity (int i, int k, int fractn, int indc, unsigned int fractj[max_neighb])

Function Documentation

◆ BoundaryCells()

void BoundaryCells ( )

The function checks velocities at boundary nodes and fixes pathological cases.

In the rare event, when two velocity vectors are directed towards each other along the same cell edge, a particle will be stuck there. To avoid this situation, one of velocities is redirected along the edge with node associated with lower pressure value.

Definition at line 447 of file VelocityReconstruction.c.

References cell, vertex::cells, vertex::coord_xy, CornerVelocity(), DefineAngle(), fracture, vertex::indnodes, ncells, node, element::node_ind, vertex::numneighb, pi, vertex::pressure, element::veloc_ind, vertex::velocity, XindexC(), and YindexC().

Referenced by DarcyVelocity().

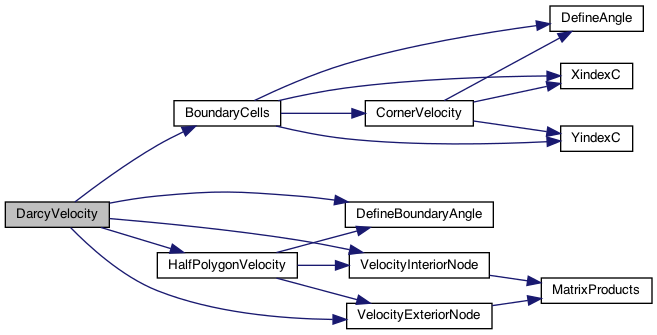

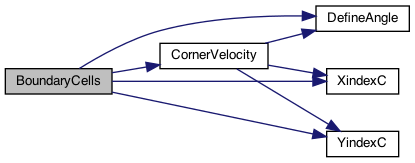

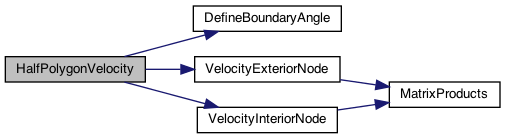

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CornerVelocity()

int CornerVelocity	(	int	i,
		int	m1,
		int	m2,
		int	m3,
		int	s1,
		int	s2,
		int	s3
	)

The Function identifies pathologycal cases at corner of fracture boundary. The angle between velocity on corner node and velocities/edges on surrounding boundary nodes are calculated. Then, if velocity is pointing outside of fracture, turns the velocity direction along the fracture edge.

Definition at line 658 of file VelocityReconstruction.c.

References vertex::coord_xy, DefineAngle(), node, pi, vertex::velocity, XindexC(), and YindexC().

Referenced by BoundaryCells().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DarcyVelocity()

void DarcyVelocity ( )

Function performs Darcy's velocity reconstruction (main function of Darcy velocities reconstruction procedure) using linear least square algorithm. Flow solver provides flow fluxes on each edge of control volume cells. Velocity on each control volume cell center (each node) is reconstructed using flow fluxes.

Velocity of interior and interior-interface nodes is reconstructed according to Eq.5 (Painter,2011); exterior node' velocity according to Eq.7 (Painter, 2011)

Function makes a loop over all nodes and calls functions for velocity reconstruction depending of type of the node (external, internal, internal-interface, external interface)

Definition at line 29 of file VelocityReconstruction.c.

References BoundaryCells(), vertex::coord_xy, DefineBoundaryAngle(), fehm, vertex::fracture, fracture, HalfPolygonVelocity(), vertex::indnodes, max_neighb, nnodes, node, vertex::numneighb, pflotran, vertex::velocity, VelocityExteriorNode(), and VelocityInteriorNode().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DefineAngle()

double DefineAngle	(	double	u1,
		double	u2,
		double	v1,
		double	v2
	)

Function defines an angle between two edges of voronoy cell

Definition at line 347 of file VelocityReconstruction.c.

References lb::angle.

Referenced by BoundaryCells(), CornerVelocity(), and ParticleOutput().

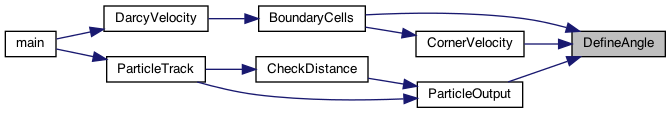

Here is the caller graph for this function:

◆ DefineBoundaryAngle()

struct lb DefineBoundaryAngle	(	int	i,
		unsigned int	edge_1,
		unsigned int	edge_2,
		int	f1,
		int	coorf
	)

The function defines angle between two edges of a boundary cell and return the result. The angle is used in flow velocity reconstruction on fracture edge.

Definition at line 214 of file VelocityReconstruction.c.

References fracture, maindir, nfract, nnodes, node, and vertex::velocity.

Referenced by DarcyVelocity(), and HalfPolygonVelocity().

Here is the caller graph for this function:

◆ HalfPolygonVelocity()

void HalfPolygonVelocity	(	int	i,
		int	k,
		int	fractn,
		int	indc,
		unsigned int	fractj[max_neighb]
	)

Velocity reconstruction on an intersection node. In this case, the control volume cell is devided onto two polygons by intersection line. The velocity reconstruction is performed on each part of control volume cell at intersection.

Definition at line 806 of file VelocityReconstruction.c.

References vertex::area, cell, vertex::cells, vertex::coord_xy, DefineBoundaryAngle(), fehm, fracture, vertex::indnodes, max_neighb, node, pflotran, vertex::type, vertex::typeN, element::veloc_ind, VelocityExteriorNode(), and VelocityInteriorNode().

Referenced by DarcyVelocity().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MatrixProducts()

struct matr MatrixProducts	(	double	normxarea[][2],
		int	number
	)

Function performs matrix dot product (GTG)-1 and returns the result.

Definition at line 214 of file VelocityReconstruction.c.

Referenced by VelocityExteriorNode(), and VelocityInteriorNode().

Here is the caller graph for this function:

◆ OutputVelocities()

void OutputVelocities ( )

This function is called to output velocities on nodes in the order of fractture IDs. The output can be used to visualise flow field of 2D reconstructed Darcy velocities in 3D simulation domain

Definition at line 214 of file VelocityReconstruction.c.
