pydfnworks.dfnGraph.graph_flow Namespace Reference

Functions
def	get_laplacian_sparse_mat (G, nodelist=None, weight=None, dtype=None, format='lil')
def	prepare_graph_with_attributes (inflow, outflow, G=None)
def	solve_flow_on_graph (Gtilde, Pin, Pout, fluid_viscosity=8.9e-4)
def	run_graph_flow (self, inflow, outflow, Pin, Pout, fluid_viscosity=8.9e-4, G=None)

Function Documentation

get_laplacian_sparse_mat()

def pydfnworks.dfnGraph.graph_flow.get_laplacian_sparse_mat	(		G,
			nodelist = None,
			weight = None,
			dtype = None,
			format = 'lil'
	)

 Get the matrices D, A that make up the Laplacian sparse matrix in desired sparsity format. Used to enforce boundary conditions by modifying rows of L = D - A

Parameters
----------
    G : object
        NetworkX graph equipped with weight attribute

    nodelist : list
        list of nodes of G for which laplacian is desired. Default is None in which case, all the nodes

    weight : string
        For weighted Laplacian, else all weights assumed unity

    dtype :  default is None, cooresponds to float

    format: string
        sparse matrix format, csr, csc, coo, lil_matrix with default being lil

Returns
-------
    D : sparse 2d float array
        Diagonal part of Laplacian

    A : sparse 2d float array
        Adjacency matrix of graph

Definition at line 10 of file graph_flow.py.

Referenced by pydfnworks.dfnGraph.graph_flow.solve_flow_on_graph().

Here is the caller graph for this function:

prepare_graph_with_attributes()

def pydfnworks.dfnGraph.graph_flow.prepare_graph_with_attributes	(		inflow,
			outflow,
			G = None
	)

 Create a NetworkX graph, prepare it for flow solve by equipping edges with  attributes, renumber vertices, and tag vertices which are on inlet or outlet

Parameters
----------
    inflow : string
        name of file containing list of DFN fractures on inflow boundary

    outflow: string
        name of file containing list of DFN fractures on outflow boundary

Returns
-------
    Gtilde : NetworkX graph

Definition at line 54 of file graph_flow.py.

Referenced by pydfnworks.dfnGraph.graph_flow.run_graph_flow().

Here is the caller graph for this function:

run_graph_flow()

def pydfnworks.dfnGraph.graph_flow.run_graph_flow	(		self,
			inflow,
			outflow,
			Pin,
			Pout,
			fluid_viscosity = 8.9e-4,
			G = None
	)

 Run the graph flow portion of the workflow

Parameters
----------
    self : object
        DFN Class


    inflow : string
        name of file containing list of DFN fractures on inflow boundary

    outflow: string
        name of file containing list of DFN fractures on outflow boundary

    Pin : double
        Value of pressure (in Pa) at inlet

    Pout : double
        Value of pressure (in Pa) at outlet

    fluid_viscosity : double
        optional, in Pa-s, default is for water

Returns
-------
    Gtilde : NetworkX graph
        Grtilde is updated with vertex pressures, edge fluxes and travel times

Notes
-----
Information on individual functions in found therein

Definition at line 172 of file graph_flow.py.

References pydfnworks.dfnGraph.graph_flow.prepare_graph_with_attributes(), and pydfnworks.dfnGraph.graph_flow.solve_flow_on_graph().

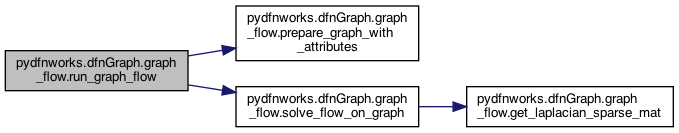

Here is the call graph for this function:

solve_flow_on_graph()

def pydfnworks.dfnGraph.graph_flow.solve_flow_on_graph	(		Gtilde,
			Pin,
			Pout,
			fluid_viscosity = 8.9e-4
	)

 Given a NetworkX graph prepared  for flow solve, solve for vertex pressures, and equip edges with attributes (Darcy) flux  and time of travel

Parameters
----------
    Gtilde : NetworkX graph

    Pin : double
        Value of pressure (in Pa) at inlet

    Pout : double
        Value of pressure (in Pa) at outlet

    fluid_viscosity : double
        optional, in Pa-s, default is for water

Returns
-------
    Gtilde : NetworkX graph
        Gtilde is updated with vertex pressures, edge fluxes and travel times

Definition at line 104 of file graph_flow.py.

References pydfnworks.dfnGraph.graph_flow.get_laplacian_sparse_mat().

Referenced by pydfnworks.dfnGraph.graph_flow.run_graph_flow().

Here is the call graph for this function:
